Cat5e RJ45 Shielded Modular Plugs Connectors for Solid and Stranded Wire Networking Cable

FOB Reference Price:Get Latest Price
$0.001 - $0.04 / Piece | 10000 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 20000 >20000
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Owire
Model Number:
8P8C
Application:
Networking cable
Type:
RJ45
Gender:
Male
Item:
RJ45 Shielded Connector
Category:
Cat5e
Material:
plastic and metal
Plating:
gold thickness as FU,3U,6U,15U,30U,50U
Prong:
3-prong
Sheath:
Nickel plating
Standard:
IEC standard
Certificate:
CE,Rohs,CQC
Packing:
100pcs Carton box
Service:
OEM or ODM
Supply Ability
Supply Ability:
50000 Piece/Pieces per Week RJ45 Shielded Connector
Packaging & Delivery
Packaging Details
Packaging Detail:100pc/bag 1000pc/bag
Port
China,shenzhen
Lead Time :
Quantity(Pieces) 1 - 20000 >20000
Est. Time(days) 15 To be negotiated
Product Description

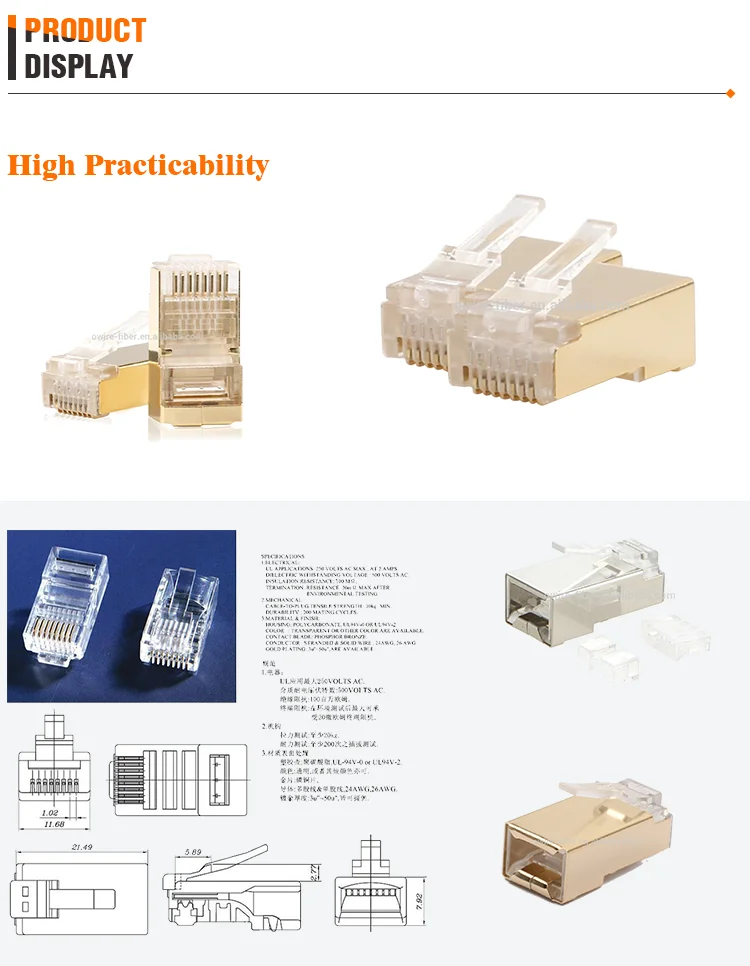

    Cat5e RJ45 Shielded Modular Plugs Connectors for Solid and Stranded Wire Networking Cable

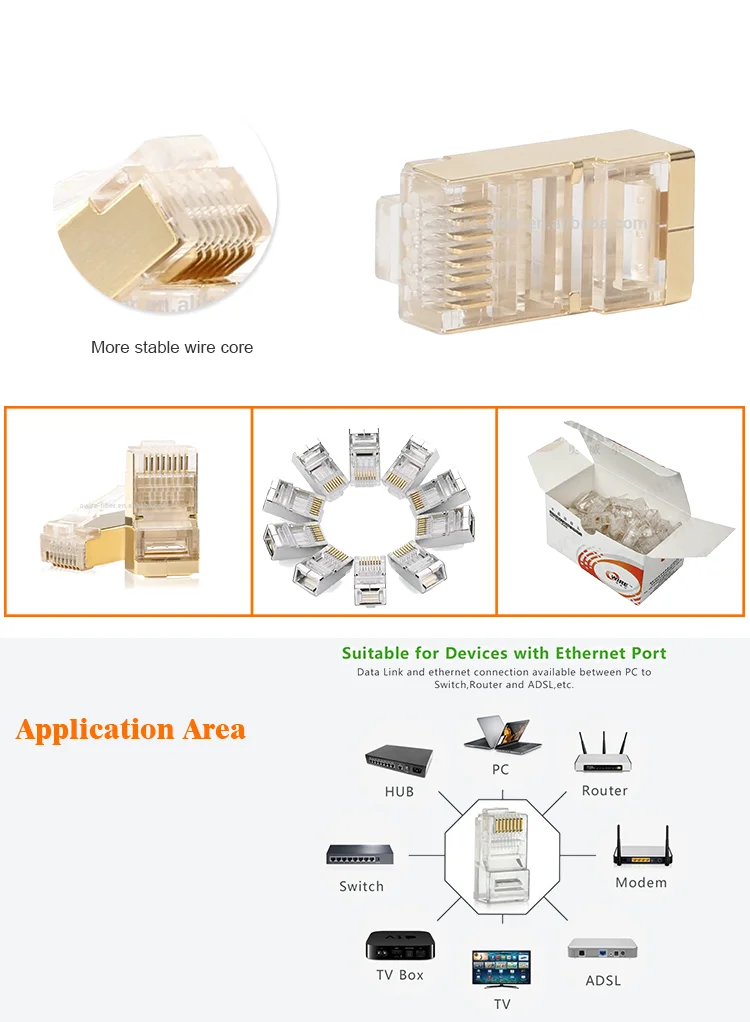

RJ45 connector plug

Packaging&Delivery

     1.Packaging Detail: 100pc/bag 10000pc/box

     2.Delivery Detail: About 2 weeks

  Specifications

     1 .IDC fif for :22-26AWG cable

     2. Housing material :PC UL94v-0

     3.Insert material :flame retardancy ABS UL94v-o

     4.PCB material : FR-4 T=1.6 mm

     5.Contact material :Phosphor brone stamp pin T=0.35mm

     6.IDC contact material:Phosphor broze T=0.5mm Nickel plating

     7.Wire: AWG22-26



1 Electrical:

UL application:250V AC (max).at 2A.

Insulation resistance:100MΩ

Termination resistance:20MΩ(max) after environmental testing

2 Mechanical:

Cable-to-plug tensile strength:19.6N/PCS (min).

Durability:750 matching cycles

Housing:polycarbonate(high transparency)

contact blade:phosphor bronze

gold plating:50u' are available
