optic fiber cable 2 Core Ftth indoor Top selling

FOB Reference Price:Get Latest Price
$18.00 - $70.00 / Kilometer | 1 Kilometer/Kilometers Outdoor Fiber Optical Cable (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
OWIRE or OEM
Model Number:
optic fiber cable
Number of Conductors:
2
Type:
Cat 7
Name:
optic fiber cable 2 Core Ftth indoor Top selling 2018
Fiber brand:
Corning, YOFC
Fiber material:
silicon dioxide
Fiber type:
G652D, G657A1, G657A2
Fiber No.:
1 , 2 4, 6, 8, 12
Fiber color:
Blue, Orange,
strengthen member:
FRP or Steel 0.4mm/0.45mm/0.5mm
Jacket material:
PVC, LSZH, PE, TPU
self-supporting wire:
Phosphatized Steel Wire 1.0mm
Supply Ability
Supply Ability:
400 Kilometer/Kilometers per Day Outdoor Fiber Optical Cable
Packaging & Delivery
Packaging Details

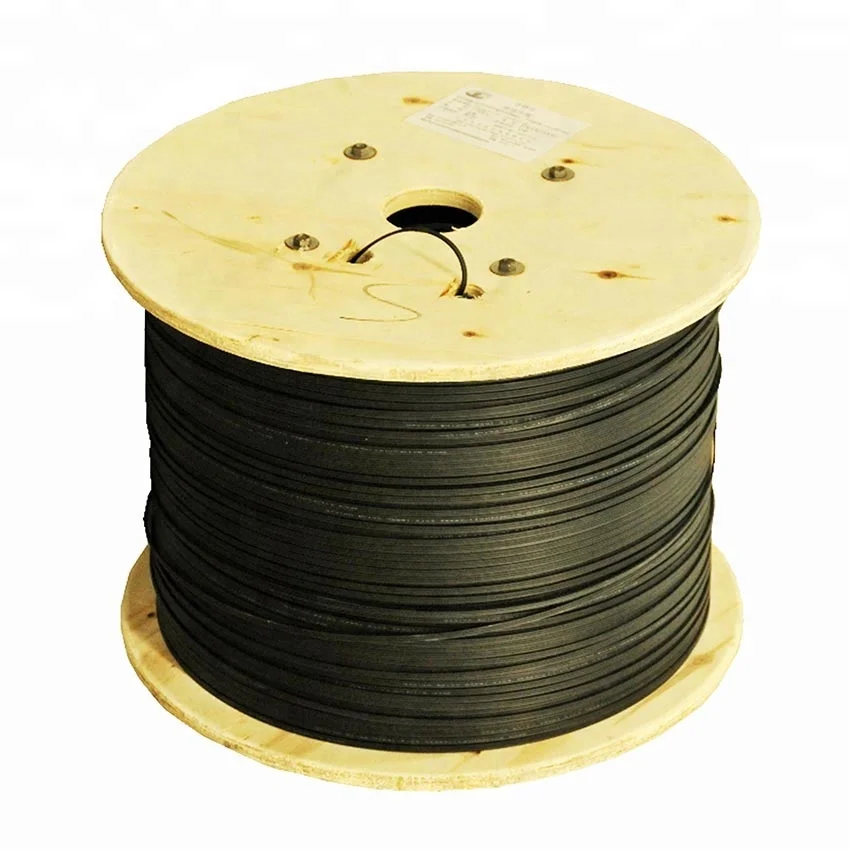

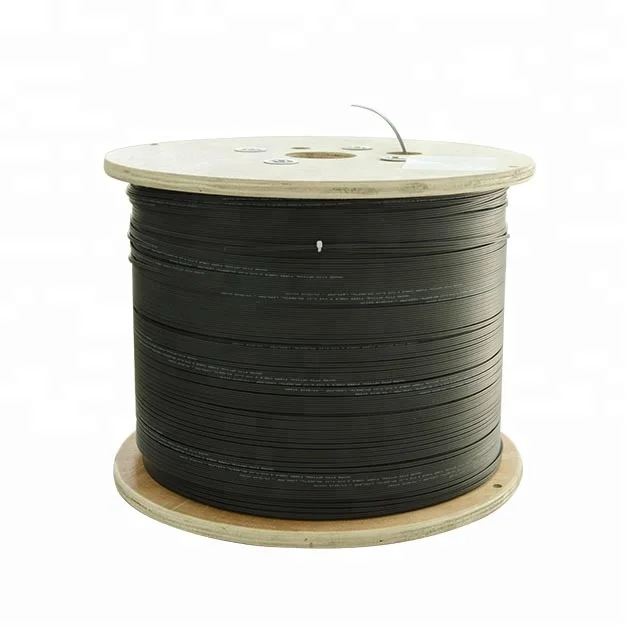

1000m/wooden drum/carton or 2000m/wooden drum/carton
optic fiber cable 2 Core Ftth indoor Top selling 2018
Port
shenzhen
Product Description


_01.jpgoptic fiber cable 2 Core Ftth indoor Top selling



Characteristic

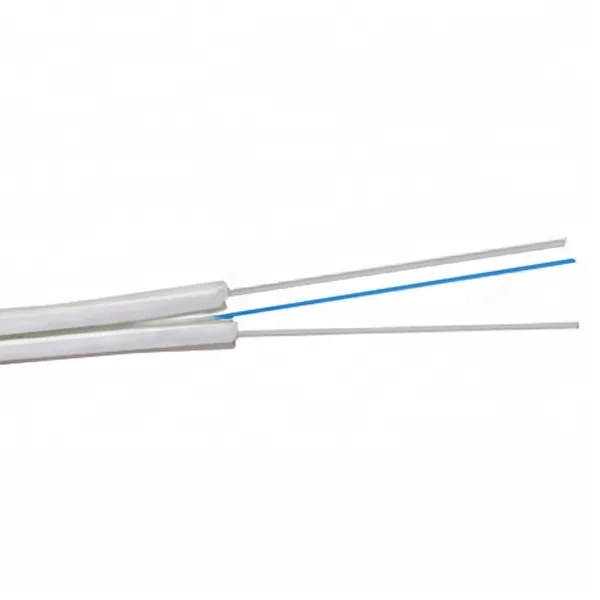

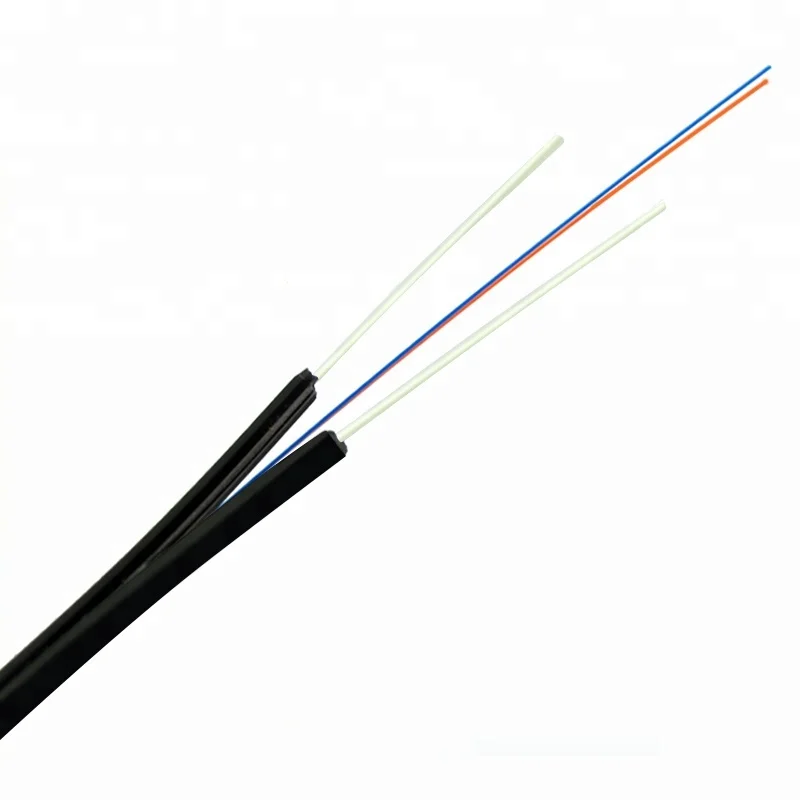

Special low-bend-sensitivity fiber provides high bandwidth and excellent communication
transmission property;

Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;

Single steel wire or massagers as the additional strength member ensures good performance of tensile strength.

Simple structure, light weight and high practicability;

Novel flute design, easily strip and splice, simplify the installation and maintenance



Geometrical Characteristics

Fiber Core

1

2

4

6

Cable Dimension(mm)

2.0x5.0

2.0x5.0

2.0x5.5

2.0x6.0

Cable Weight (kg/km)

20

20

21

21


Mechanical Characteristics

Tensile strength(N)

Long Term

60

Short Term

120

Bending Radius(CM)

Dynamic

35

Static

15

Fiber

Fiber Type(core/cladding dimension)

G.657A,G.652D

Transmission Characteristics



SMF



1310/1550(nm)

Attenuation(db/km)

≤0.4/0.30

Minimum Bandwidth(MHz·km)

-----------------------

Environmental Characteristics

Storage Operating Temperature

-20℃~+60℃
