High Quality RG6 RG59 RG58 RG11 RG Series Coaxial Cable

FOB Reference Price:Get Latest Price
$1.00 - $128.00 / Box | 100 Box/Boxes (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
rg6 cable, RG6 duoble Shield CATV Communication Cable Coil 100m
Number of Conductors:
1
Type:
Coaxial
Name:
High Quality RG6 RG59 RG58 RG11 RG Series Coaxial Cable
Application:
CATV/CCTV
Conductor Material:
CCS,CCA,CU
Shield:
Al Foil+braiding
Jacket:
PVC PE etc
Coaxial Cable coverage::
40%, 60%, 77%, 85%, 90%, 93%, 97% or customized
Power::
0.5mm2, 0.75mm2 or OEM
Impedence::
75Ohm
Supply Ability
Supply Ability:
50000 Meter/Meters per Week
Packaging & Delivery
Packaging Details
1). Coil With Carton
100M/Coil, 6 Coil/Carton
200M/Coil, 300M/Coil, 2 Coil/Carton
Other Length: 20Yard/Coil, 30Yard/Coil, 60Yard/Coil, 100Yard/Coil.
2). Reel With Pallet or Not
100M/Paper Reel
100M/Plastic Reel, 200M/Palstic Reel, 305M/Plastic.
305M/Wooden Reel, 500M/Wooden Reel
3). Reel In Box, With Pallet
500ft Reel In Box.
1000ft/Reel In Box.
Color Box and OEM Package available.
20" Container Full Load: 350-420km.
40" Container Full Load: 650-780km.
Port
shenzhen/hongkong
Product Description

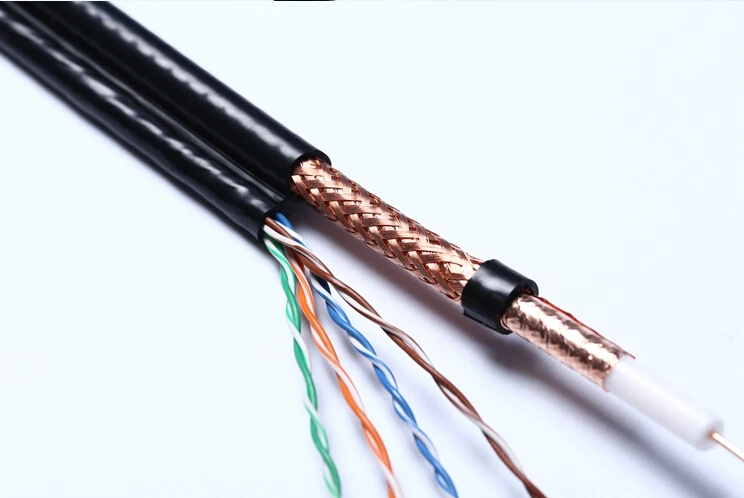

_01.jpgHigh Quality RG6 RG59 RG58 RG11 RG Series Coaxial Cable



Model NO.High Quality RG6 RG59 RG58 RG11 RG Series Coaxial Cable
Center conductor Copper Clad Steel, Bare Copper, Tinned Copper
Al-foil Unbonded AP, Bonded AP, APA
Braiding wire AL_MG, Bare Copper, Tinned Copper
Braiding wire diameter 0.10mm, 0.12mm, 0.13mm, 0.14mm, 0.15mm, 0.16mm
Braiding net 32#, 48#, 64#, 72#, 80#, 96#, 120#, 128#, 144# and more available
Braiding coverage Between 30% - 100% available
PVC jacket Flame retardant, UV, or UL available
With Siamese 2*15*0.15mm  2*18*0.18mm  2*7*0.38mm  CCA/BC/Tinned Copper
With Messenger 1.0mm/1.3mm Steel
Packing Lengths 100m/roll, 200m/roll, 305m/roll, according to client's request
Inner packing Roll, wooden reel, plastic reel, paper reel available
Outer packing Carton box, pull out box, pallet available


Options:
1. Inner Conductor: Bare Copper, CCA, CCS
2. Dielectric: Foam/Solid PE
3. Shield: (Bonded/non-bonded) A/P/A, A/P Foil, copper Foil
4. Braid wire material: Bare Copper, CCA, AL-Mg, TC .
5. Braid wire diameter: 0.12mm, 0.16mm
6. Braid net: 64W, 72W, 80W, 96W, 128W and more
7. Braid coverage: 60%, 70%, 80%, 90% and more
8. PVC jacket degree: 65, 70, 75 and more
9. Certifications: UL, CSA, ETL, RoHS, CE etc.
10. Customized requirement welcomed.
Electrical Specifications:
Characteristic Impedance: 75 Ohm± 3 Ohm
Nominal Velocity of Propagation: 85%
Nominal Capacitance: 16.2 pF/ft
Return Loss: 20dB min (5-2250 MHz)
