10m/30m/50m/100m roll CCS CCA BC RG59/RG6 CCTV CATV camera coaxial cable

FOB Reference Price:Get Latest Price
$1.00 - $100.00 / Roll | 100 Roll/Rolls Coaxial Cable (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
OWIRE
Model Number:
Coax
Number of Conductors:
≥ 10
Type:
Coax/Coaxial, Coaxial
Model:
RG58/RG59/RG11
Conductor Material:
CCS/CCA/BC
Jacket:
PVC/PE
Dielectric Material:
Foam PE
Diameter of Dielectric:
3.66±0.15mm
Diameter of inner conductor:
0.81±0.02mm
Color:
white,black,green,purple,yellow,orange,red,silver,golden etc.
Application:
CATV/CCTV 01
Shielding:
AL-Foil and Metal Weaves CCA
Supply Ability
Supply Ability:
55000 Meter/Meters per Week Coaxial Cable
Packaging & Delivery
Packaging Details
100m,200m,300m,500m/roll package by wooden drums
Port
shenzhen
Lead Time :
10-25 days

10m/30m/50m/100m roll CCS CCA BC RG59/RG6 CCTV CATV camera coaxial cable









Product Description

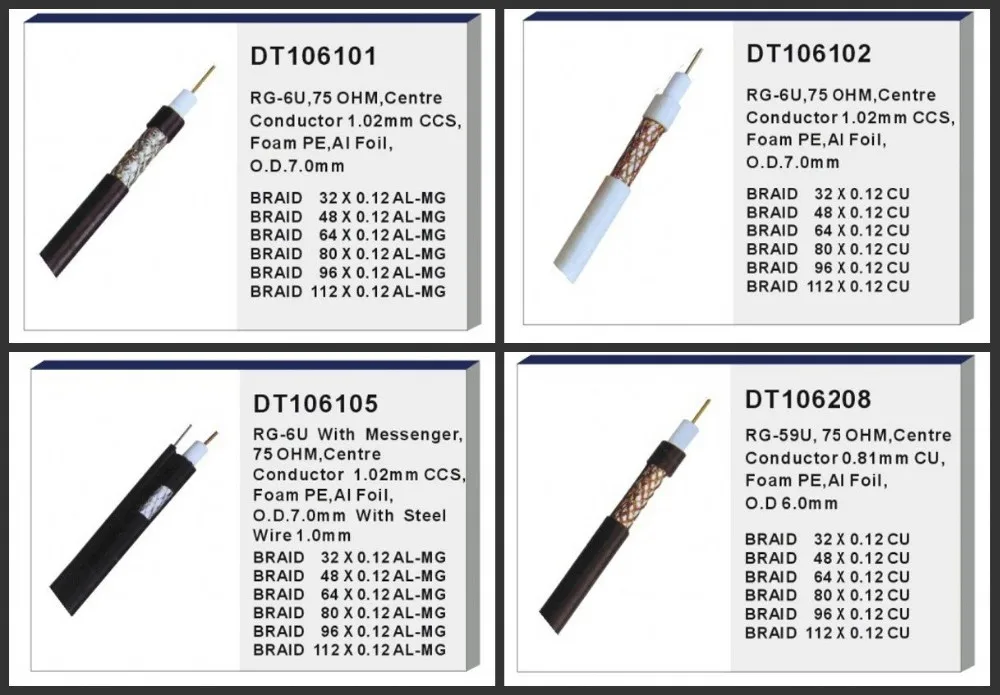

product nameCoaxial cable, CCTV Cable
Center conductorCopper Clad Steel(CCS), Bare Copper(BC), Tinned Copper(TC)
Al-foil Unbonded AP, Bonded AP, APA
Braiding wireAL_MG, Bare Copper, Tinned Copper
Braiding wire diameter0.10mm, 0.12mm, 0.13mm, 0.14mm, 0.15mm, 0.16mm
Braiding net32#, 48#, 64#, 72#, 80#, 96#, 120#, 128#, 144# and more available
Braiding coverageBetween 30% - 100% available
PVC jacketFlame retardant, UV, or UL available

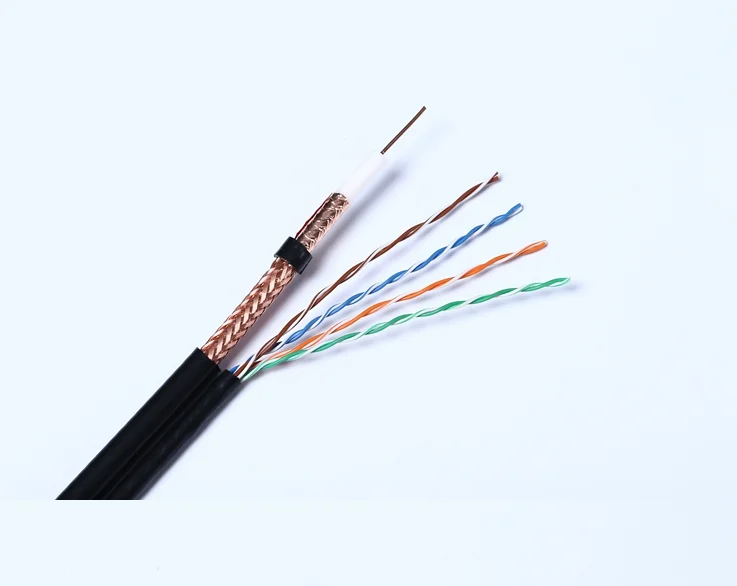

With Siamese 2*15*0.15mm  2*18*0.18mm  2*7*0.38mm  CCA/BC/Tinned Copper
With Messenger 1.0mm/1.3mm Steel
Packing Lengths10m/roll, 00m/roll, 200m/roll, 305m/roll etc.
Inner packingRoll, wooden reel, plastic reel, paper reel available
Outer packingCarton box, pull out box, pallet available
OEM/ODMOK

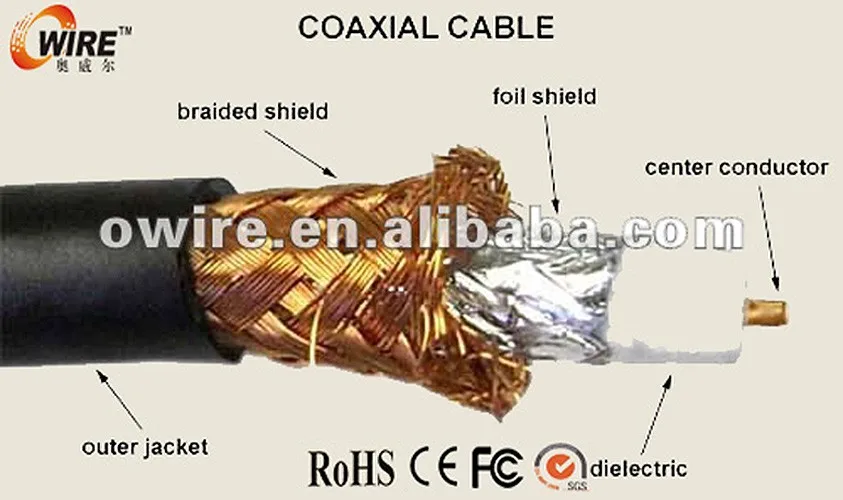

SPECS:
1. Inner Conductor: Bare Copper, CCA, CCS
2. Dielectric: Foam/Solid PE
3. Shield: (Bonded/non-bonded) A/P/A, A/P Foil, copper Foil
4. Braid wire material: Bare Copper, CCA, AL-Mg, TC .
5. Braid wire diameter: 0.12mm, 0.16mm
6. Braid net: 64W, 72W, 80W, 96W, 128W and more
7. Braid coverage: 60%, 70%, 80%, 90% and more
8. PVC jacket degree: 65, 70, 75 and more
9. Certifications: UL, CSA, ETL, RoHS, CE etc.
10. Customized requirement welcomed.
Electrical Specifications:
Characteristic Impedance: 75 Ohm± 3 Ohm
Nominal Velocity of Propagation: 85%
Nominal Capacitance: 16.2 pF/ft
Return Loss: 20dB min (5-2250 MHz)

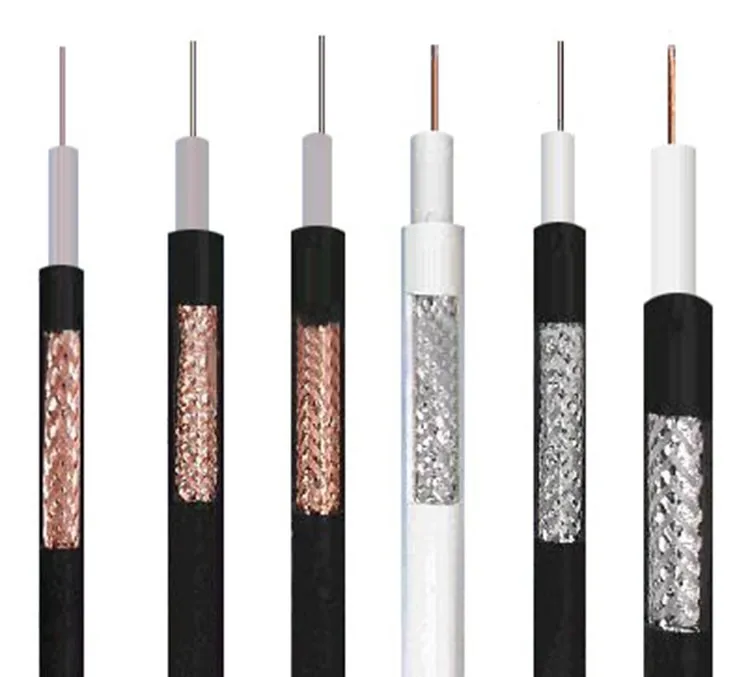

Product photo



CATV CCTV Cable Series rg6 rg58 rg11 rg59 Coaxial CableCATV CCTV Cable Series rg6 rg58 rg11 rg59 Coaxial CableCATV CCTV Cable Series rg6 rg58 rg11 rg59 Coaxial CableCATV CCTV Cable Series rg6 rg58 rg11 rg59 Coaxial Cable

CATV CCTV Cable Series rg6 rg58 rg11 rg59 Coaxial CableCATV CCTV Cable Series rg6 rg58 rg11 rg59 Coaxial Cable

CATV CCTV Cable Series rg6 rg58 rg11 rg59 Coaxial CableCATV CCTV Cable Series rg6 rg58 rg11 rg59 Coaxial CableCATV CCTV Cable Series rg6 rg58 rg11 rg59 Coaxial Cable

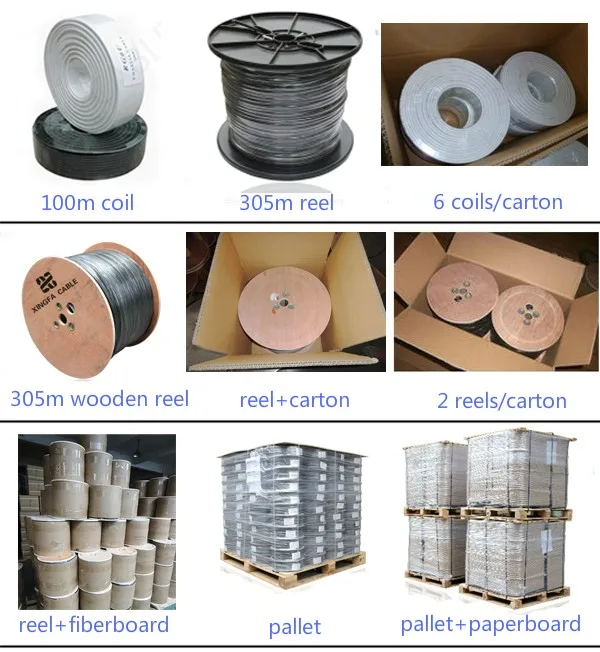

Packaging & Delivery
Coaxial Cable:
1). Coil With Carton
100M/Coil, 6 Coil/Carton
200M/Coil, 300M/Coil, 2 Coil/Carton
Other Length: 20Yard/Coil, 30Yard/Coil, 60Yard/Coil, 100Yard/Coil.
2). Reel With Pallet or Not
100M/Paper Reel
100M/Plastic Reel, 200M/Palstic Reel, 305M/Plastic.
305M/Wooden Reel, 500M/Wooden Reel
3). Reel In Box, With Pallet
500ft Reel In Box.
1000ft/Reel In Box.
Color Box and OEM Package available.
20" GP Container Full Load: 350-420km.
40" HQ Container Full Load: 650-780km.
CATV CCTV Cable Series rg6 rg58 rg11 rg59 Coaxial Cable
