Lan Cable Cover Outdoor Multi Core Cat6 FTP SFTP Cable

FOB Reference Price:Get Latest Price
$10.00 - $60.00 / Roll | 100 Roll/Rolls (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Owire
Model Number:
S-FTP Cat5e 26
Number of Conductors:
8
Type:
Cat 5e
Conductor No.:
8 cores , 4 pairs
Conductor style:
BC Solid or Stranded Bare Copper
certificates:
CE/ISO/ROHS/TLC/444
Color:
Grey/Blue/Yellow/Orange/White/Black/Red (customized)
Jacket:
PVC, LSZH
Length/roll:
305m/roll
Copper Network Cable:
Cat5/cat5e/cat6/cat6a/Cat3/cat7/cat8
Cat5e cable styles:
UTP,FTP,braided SFTP
Lan cable styles:
indoor/outdoor Customized
Supply Ability
Supply Ability:
50000 Roll/Rolls per Day Cat5e stp Lan Cable
Packaging & Delivery
Packaging Details
305m/carton, 2cartons/box (can be customized)
Port
shenzhen

Cable cat5e UTP in stock

Product Description



Product name

Owire branded cat5e 4pairs lan cable

Lan cable style

S-FTP

Structure

4P+Mylar+AL+B (braided lan cable)

Conductor

Pure copper or CCA,CCS

Diameter

23AWG,24AWG,25AWG,26AWG etc.

Jacket

PVC or LSZH

Flu ke test

Yes

Rated Temperature

60 or 75

copper

stranded or solid bare copper

Insulation

HD-PE

Impedance

100±15%Ω at 1~100MHz

length per roll

305M/1000ft/roll

Print Legend

CM or CMR

waterproof

Yes

Logo printing

Yes

Design

OEM,ODM OK

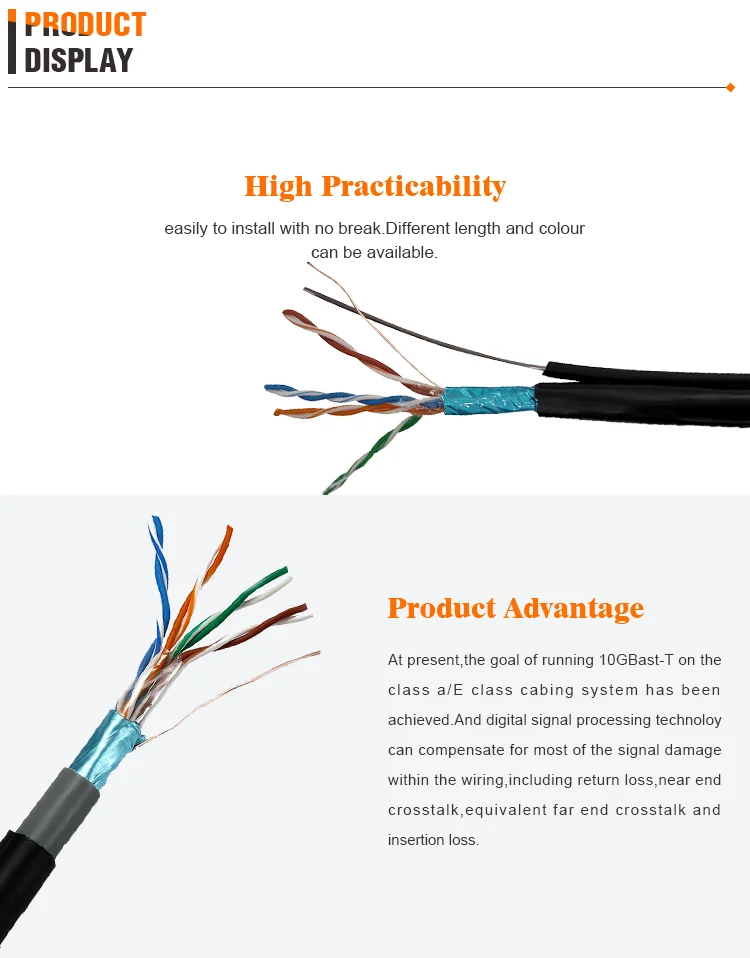

Features:
1.Double Shields Assure the Anti-Jam and Data-Protection Strongly
2.Fast and Reliable Connection
3.Twisted Pairs with Bright Color for Easy Recognition
4.Ripcord and Footmark for Convenient Use
5.Smooth Jacket for Easy Pulling in Tight Space
6.Color in Light Grey, Dark Grey, Blue, White or as per Your Requirement

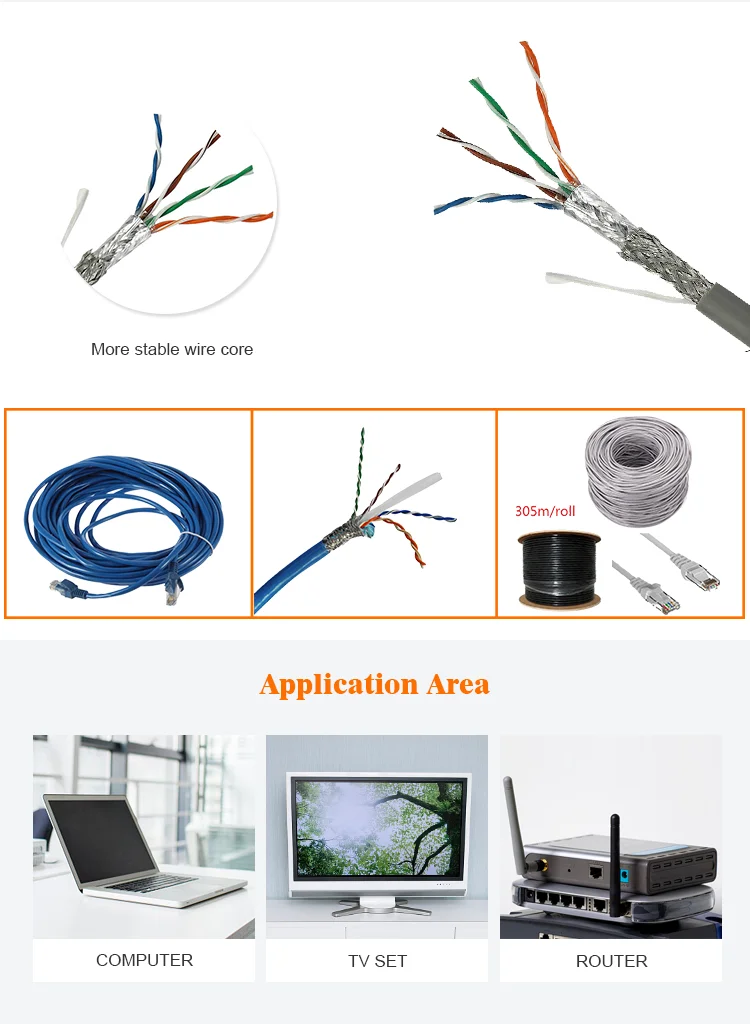

Applications:
1.Computer Network Cabling Project.
2.Broadband Network Communication.
3.Digital ISDN Network and ATM 155Mbps Network
4.Ethernet Network
5.Audio and Data Transmission
Insulation:
Material: HDPE and FRPE
Diameter: 1.02±0.005mm
Average thickness: 0.212mm
Minimum point thickness: 0.2095mm
Sheath:
Material: PVC or LSOH
Nominal diameter: 6.0 ±0.2mm
Average thickness: 0.55mm
Minimum point thickness: 0.50mm
Operating temperature: -20 to 75°C
Minimum bend radius (install): (8*OD)
Flame test: CMX, CM, and IEC60332-1
Reference standard: TIA/EIA568B and IEC/ISO11801

Packing: 305m/carton
