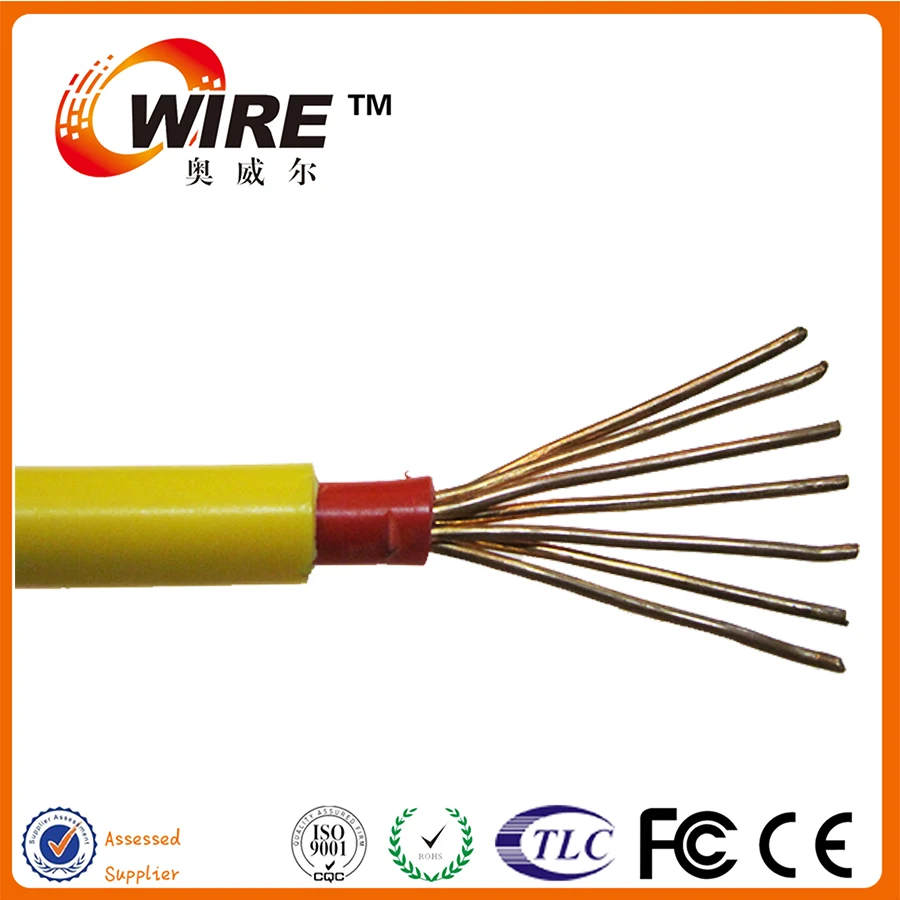

Manufacture VV copper single core cable 1KV PVC Insulation PVC Sheath Electrical power Cable

FOB Reference Price:Get Latest Price
$0.50 - $10.00 / Meter | 100 Meter/Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
owire or OEM
Model Number:
vv
Type:
Low Voltage
Application:
Construction, for linking household electric applicates, fixed laying
Conductor Material:
Copper
Jacket:
PVC
Insulation Material:
PVC
Name:
PVC Insulation PVC Sheath Electrical power Cable
Conductor Type:
Solid Conductor
Max.conductor working temperature::
70℃ Centigrade
Conductor short circuit temperature:
highest temperature not more than 160℃
Insulation:
pvc
jacket:
pvc
Outer diameter:
as standard or custom made
Certificate:
ISO9001
OEM or ODM:
Yes
Supply Ability
Supply Ability:
1000 Kilometer/Kilometers per Month
Packaging & Delivery
Packaging Details
1.In rolls or in wooden drum.
2.In export wooden pallet .
3.as per customer's requirements.
Port
shenzhen

Manufacture VV copper single core cable 1KV PVC Insulation PVC Sheath Electrical power Cable




1. Standard:National Standard GB/T12706-2008/IEC60502,AS/NZS,ICEA, ASTM etc



2.  Rated Voltage: U0/U:   0.6/1kv

3.  Construction :

Typenum. of coresnominal cross section of conductor(mm2)
Copper conductoraluminum conductor
vv vy vv22 vv23vlv vly vly22 vly231*1.5-800 2.5-800 10-800
vv vy vv22 vv23 vv32 vv33vlv vly vly22 vly23 vly32 vly3321.5-300 2.5-300 4.0-300 10-300
vv vy vv22 vv23 vv32 vv33vlv vly vly22 vly23 vly32 vly3331.5-400 2.5-400 10-400
vv vy vv22 vv23 vv32 vv33vlv vly vly22 vly23 vly32 vly3341.5-400 2.5-400 4-400 10-400
vv vy vv22 vv23 vv32 vv33vlv vly vly22 vly23 vly32 vly333+11.5-400 2.5-400 4-400 10-400
vv vy vv22 vv23 vv32 vv33vlv vly vly22 vly23 vly32 vly3351.5-400 4-400 10-400
vv vy vv22 vv23 vv32 vv33vlv vly vly22 vly23 vly32 vly334+11.5-400 4-400 10-400
vv vy vv22 vv23 vv32 vv33vlv vly vly22 vly23 vly32 vly333+21.5-400 4-400 10-400
Remarks: *the armored single-core cable are used for D.C system only, As for A.c system, non-magnetic armored material should be used , or a magnaetic isolation should be applied.
Typedetailed description of typescope of utility
VVcopper conductor, PVC insulated and sheathed power cablefor laying indoors, in tunnels, or cable trench, well or direct in ground
VLValuminum conductor, PVC insulated and sheathed power cable
VYcopper conductor, PVC insulated , PE sheathed power cable
VLYaluminum conductor, PVC insulated and PEsheathed power cable
VV22copper conductor, PVC insulated and sheathed steel tape aremored power cablefor laying indoors, in tunnels, cable trench, well or direct in ground be able to b ear certain external mechanical force, but unable to bear large pulling force,
VLV22aluminum conductor, pvc insulated and sheathed steel tape aremored power cable
VV23copper conductor, PVC insulated and PE sheathed steel tape aremored power cable
VLV23aluminum conductor, PVC insulated and PE sheathed steel tape aremored power cable
VV32copper conductor, PVC insulated and sheathed, thin steel wire armored power cablefor laying indoor, in tunnel cable trenchk, well or direct in ground, be able to bear certain external mechanical force and certain pulling force.
VLV32aluminum conductor, pvc insulated and sheathed, thin steel wire armored powered cable
VV33copper conductor, PVC insulated, Pe sheathed, thin steel wire armored power cable
VLV33aluminuym conductor, PVC insulated, PE sheathed, thin steel wire armored power cable

4.  Application:

Suitable for use in power distribution lines or fixed installation with rated voltage up to and including 0.6/1kv.

5.  Operating Characteristics:

Max.permission conductor continous operating temperature of conductor;70 °C

Max.short-circuit temperature of conductor shall not exceed 160 °C (cross section fo conductor up to and inculding 300mm2), cross section fo conductror biger than 300mm2 is 140degree celsius(5s maximum duration)

The ambient temperature under installation of cable should not below 0 °C

The  bending radius of cable should not less than 10 times of outer diameter of the cable



6.  Operating condition when cable laying

Max.permission continous operating temperature of conductor:70 °C

Ambient air temperature:40 °C

Soil temperature:25 °C

Thermal resistivity of soil:1.0 °C .m/w

Depth of laying :0.7m

Only consider a loop

Single-core cable is horizontal laid, adjacent space is equivalent to the diameter of the cable
