CE Certified UTP Cat5e Lan Cable Network Cable

FOB Reference Price:Get Latest Price
$30.00 - $100.00 / Box | 50 Box/Boxes (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Owire
Model Number:
cat5e utp Indoor
Number of Conductors:
8
Type:
cat5e network cable
Cable OD:
>=5.Omm
Insolution:
0.91mm New HDPE
Conductor:
24awg Bare Copper
Stucture:
1 pair twisted +4 pairs twisted
Jacket:
PVC , LSZH ,LLDPE
Frequency:
100MHz
Reference Standard:
YD/T1019-2001,ISO/IEC 11801 ANSI/TIA/EIA-568B,UL444
Certification:
CE/ROHS/ISO9001/UL/FCC
Main Feature:
Pass test
Supply Ability
Supply Ability:
50000 Roll/Rolls per Month cat5e network cable
Packaging & Delivery
Packaging Details
1. Cable marking & Color : As your requirement.
2. Packing Size: 305m/box 2 boxes/carton
1000ft(305m)/roll
950 carton/20ft container
2100 carton/40HQ (can design according to customer requirement)
1 ) CAT5E UTP: Inner box: 35*35*21cm Outer carton: 44*36*37cm
2 ) CAT6 UTP : Inner box: 39*39*23cm Outer carton: 41*41.5*50cm
Port
China,shenzhen

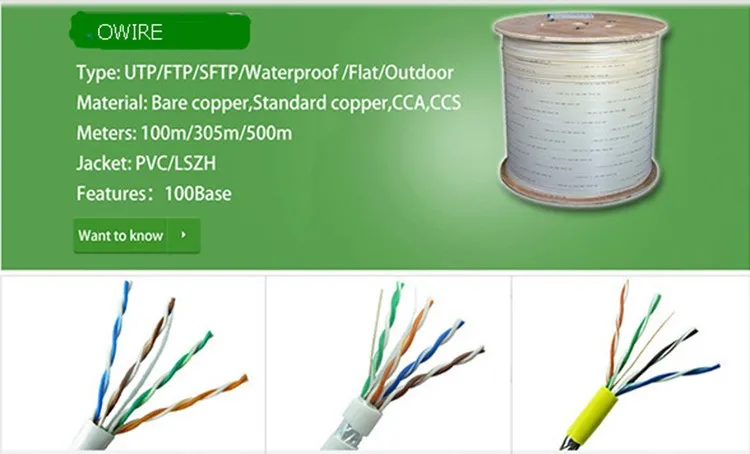

Product Show
CE Certified  UTP Cat5e Lan Cable  Network Cablecat5e cable produce.jpg

utp cat 5e cable overview

1.Conductor:

Material: Solid Bare Copper

Number of pairs: 4 pairs

AWG: 24AWG

Conductor diameter: 0.51 ±0.015mm

2.Insulation:

Material: HD-PE

Average thickness: 0.225mm

Minimum point thickness: 0.2245mm

First screen: Aluminum Foil (superposition rate: 25%)

Overall screen: 48/0.1mm TC braid shield (braid density: 40%)

Jacket rid cord: optional

3.Sheath:

Material: PVC or LSZH

Nominal diameter: 5.1 ±0.2mm

Average thickness: 0.53mm

Minimum point thickness: 0.525mm

4.Includes:

Insulation

Jacket:PVC / LSZH

5.Standa

YD/T1019-2001, ANSI/TIA/EIA-568B, ISO/IEC11801,UL444

6.Application :

Horizontal cabling in working area.Used in voice system,ISDN,ADSL,Communications room.

10BASE-T,100BASE-TX/T4,1000BASE-T,etc.

More products:

indoor cableowire cable (13).jpgowire cable (14).jpgowire cable (9).jpgowire cable (11).jpgowire cable (12).jpg

Application

utp/ftp/s-ftp cat5e/cat6/cat6a cable ApplicationHTB18sJyHVXXXXaUXVXXq6xXFXXX9.jpg

Process

 utp/ftp/s-ftp cat5e/cat6/cat6a produce processcable produce process 1.jpg

Packaging & Shipping

utp/ftp/s-ftp cat5e/cat6/cat6a packaging and shippingcat5e cable package and shippment 1.jpg

About Us

Owire Cable and Wire produce and sale company.

Click here to see our factorycat5e cat6 cat6a cable.jpg

1.Company Introduction
Expert Maker of Network Cabling System Products since 2009
Founded in 2009, Shenzhen Owire Investment and Development Co. Ltd is a professional
manufacturer of network, fiber-optic, coaxial, power supply, telephone and power cables, keystones,
connectors, distribution cabinets and other network cabling system products. Owire brand is well
recognized in over 20 countries and regions especially in the US, Europe, Southeast Asia and Africa.



2.Meeting UL and CE Standards
Our factory has been implementing ISO 9001:2008 system since 2009 because of our
meticulousness. Our 10,000sqm factory in Shenzhen is furnished with advanced production and
testing equipment imported from Europe and the US. All of our products are compliant with UL,
DTX-1800, RoHS and CE standards.



3.Place Your OEM/ODM Order Today
Relying on our prestige, credible quality, excellent service and competitive price, we are now
trusted by our customers worldwide. OEM and ODM orders are welcome. Contact us today for more
information.

FAQ

utp/ftp/s-ftp cat5e/cat6/cat6a faq

1.What is your MOQ?

Free MOQ. You'll be highly appreciated,if you could provide us your QTY. Then we'll calculate cost correspondingly.

2.Can I  get samples?

Yes. Samples will be sent for checking. We usually send samples by DHL,Fedex,UPS,TNT or Aramex. If you have carrier account,it'll be pleased to ship with your account. If not,

you can pay by Western Union,Paypal or others.

3.How long is sample & production leadtime?

A.Sample leadtime: 3-5 days,after confirmed your payment.

B.Production leadtime:10-12 days,after confirmed sample & payment.

4.Do you accept OEM or ODM?

Yes,we're factory. And we have our own Engineering Department. You just need to send us your requirements.

5.Which kinds of certifications do you have?

We have UL /ROHS /CE/ ISO /FCC /CCC certifications.
