4P UTP/STP/FTP/S-FTP Cat5/Cat5e/Cat6/7 netzwerk kabel,indoor ftp network cable

FOB Reference Price:Get Latest Price
$10.00 - $60.00 / Roll | 100 Roll/Rolls (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Owire
Model Number:
FTP Cat5e 83
Number of Conductors:
8
Type:
Cat 6a
Conductor No.:
8 cores , 4 pairs
Conductor style:
BC Solid or Stranded Bare Copper
certificates:
CE/ISO/ROHS/TLC/UL444
Color:
Grey/Blue/Yellow/Orange/White/Black/Red (customized)
Jacket:
PVC, LSZH
Length/roll:
305m/roll
Copper Network Cable:
Cat5/cat5e/cat6/cat6a/Cat3/cat7/cat8
Cat5e cable styles:
UTP,FTP,braided SFTP
Lan cable styles:
indoor/outdoor Customized
Supply Ability
Supply Ability:
50000 Roll/Rolls per Day Cat5e stp Lan Cable
Packaging & Delivery
Packaging Details
305m/carton, 2cartons/box (can be customized)
Port
shenzhen

4P UTP/STP/FTP/S-FTP Cat5/Cat5e/Cat6/7 netzwerk kabel,indoor ftp network cable







Product Description





Product nameOwire branded cat5e 4pairs lan cable
Lan cable styleS-FTP
Structure4P+Mylar+AL+B (braided lan cable)
ConductorPure copper or CCA,CCS
Diameter 23AWG,24AWG,25AWG,26AWG etc.
JacketPVC or LSZH
Flu ke testYes
Rated Temperature60℃ or 75℃
copper stranded or solid bare copper
InsulationHD-PE
Impedance100±15%Ω at 1~100MHz
length per roll305M/1000ft/roll
Print LegendCM or CMR
waterproofYes
Logo printingYes
DesignOEM,ODM OK



Features:
1.Double Shields Assure the Anti-Jam and Data-Protection Strongly
2.Fast and Reliable Connection
3.Twisted Pairs with Bright Color for Easy Recognition
4.Ripcord and Footmark for Convenient Use
5.Smooth Jacket for Easy Pulling in Tight Space
6.Color in Light Grey, Dark Grey, Blue, White or as per Your Requirement

Applications:
1.Computer Network Cabling Project.
2.Broadband Network Communication.
3.Digital ISDN Network and ATM 155Mbps Network
4.Ethernet Network
5.Audio and Data Transmission
Insulation:
Material: HDPE and FRPE
Diameter: 1.02±0.005mm
Average thickness: 0.212mm
Minimum point thickness: 0.2095mm
Sheath:
Material: PVC or LSOH
Nominal diameter: 6.0 ±0.2mm
Average thickness: 0.55mm
Minimum point thickness: 0.50mm
Operating temperature: -20 to 75°C
Minimum bend radius (install): (8*OD)
Flame test: CMX, CM, and IEC60332-1
Reference standard: TIA/EIA568B and IEC/ISO11801

Packing: 305m/carton

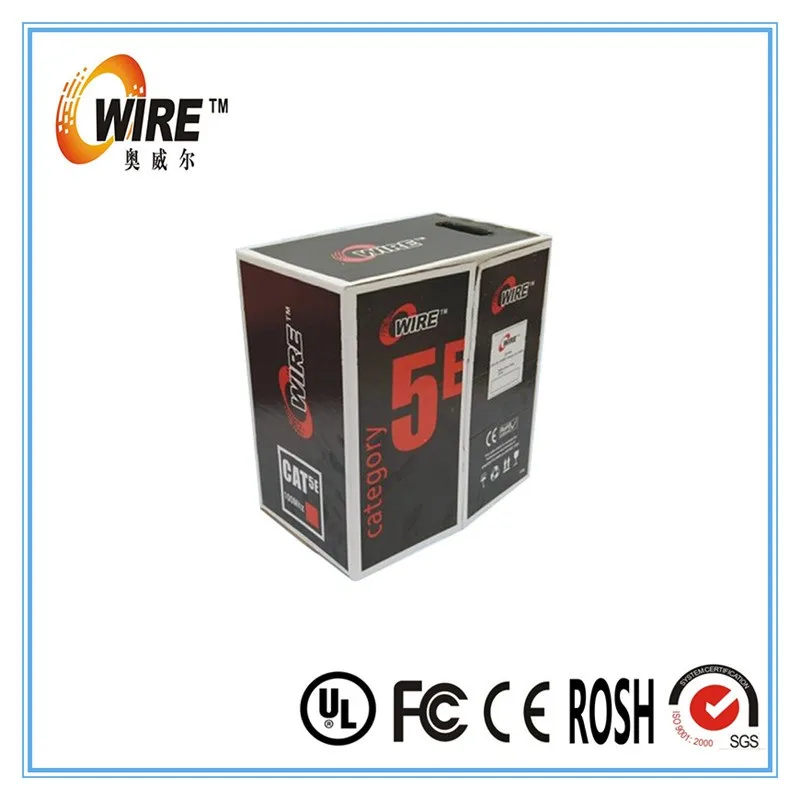

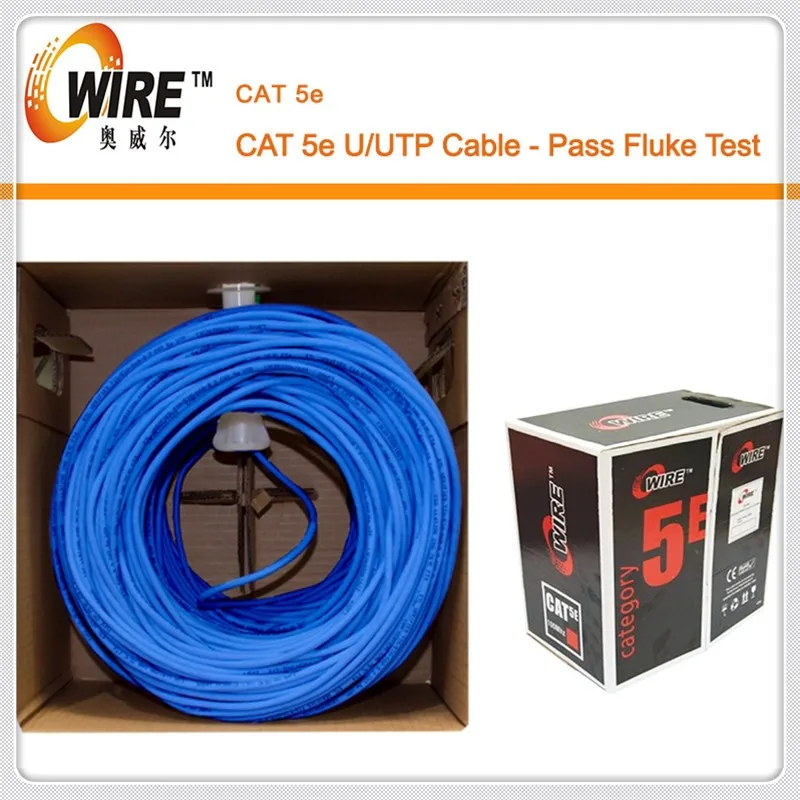

Product photo

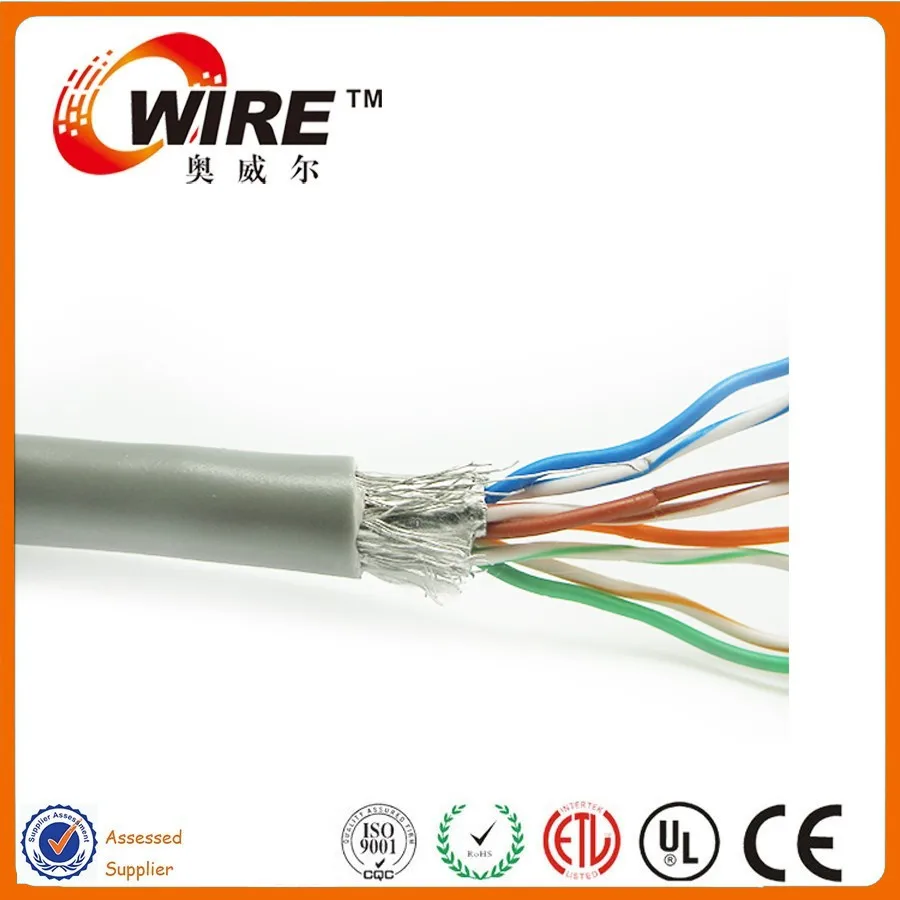

braided lan cable.jpg



5-3



Lan cable.jpg



2

computer cable.jpg





UTP/FTP/S-FTP cat5e/cat6/cat6a network cable Application

Horizontal cabling in working area.Used in voice system,ISDN,ADSL,Communications room.

10BASE-T,100BASE-TX/T4,1000BASE-T,etc.



network cable application.JPG
