PE PVC Double Jacket UTP FTP Waterproof Outdoor Cat5/Cat5e Cable With Steel Messenger Tensioner

FOB Reference Price:Get Latest Price
$6.50 - $12.20 / Roll | 100 Roll/Rolls (Min. Order)
Lead Time:
Quantity(Rolls) 1 - 100 101 - 300 301 - 500 >500
Est. Time(days) 7 14 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
OWIRE
Model Number:
outdoor lan cable
Number of Conductors:
8, 8 cores CCU or CCC
Type:
Cat 5e
Conductor:
Solid or Stranded Bare Copper
Jacket:
PVC LSZH
Structure:
4p Twisted Pair
Insulation:
HDPE/LDPE jacket
certificates:
FLU KE/CE/ISO/ROHS/TLC/444
Length:
305m 1000ft
Application:
telecommunication networking system
Models:
cat5/cat5e/cat6/cat6a/cat6e/cat7
Supply Ability
Supply Ability:
50000 Roll/Rolls per Week aerial ethernet cable with steel tensioner
Packaging & Delivery
Packaging Details
1. Cable marking & Color : As your requirement.
2. Packing Size: 305m/box 2 boxes/carton
1000ft(305m)/roll
950 carton/20ft container
2100 carton/40HQ (can design according to customer requirement)
1 ) CAT5E UTP: Inner box: 35*35*21cm Outer carton: 44*36*37cm
2 ) CAT6 UTP : Inner box: 39*39*23cm Outer carton: 41*41.5*50cm
Port
shenzhen
Lead Time :
Quantity(Rolls) 1 - 100 101 - 300 301 - 500 >500
Est. Time(days) 7 14 20 To be negotiated

PE PVC Double Jacket  UTP FTP Waterproof Outdoor Cat5/Cat5e Cable With Steel Messenger Tensioner

Product Description



Product nameethernet cable with steel messenger
Lan cable styleUTP, FTP, S-FTP
Structure4P+Mylar+AL+B (braided lan cable)
ConductorPure copper or CCA,CCAG,HCCA,CCS
Diameter 23AWG,24AWG,25AWG,26AWG etc.
JacketPVC or LSZH
Flu ke testYes
Rated Temperature60℃ or 75℃
copper stranded or solid bare copper
InsulationHD-PE
Impedance100±15%Ω at 1~100MHz
length per roll305M/1000ft/roll
Print LegendCM or CMR
waterproofYes
Logo printingYes
DesignOEM,ODM OK


Features:
1.Double Shields Assure the Anti-Jam and Data-Protection Strongly
2.Fast and Reliable Connection
3.Twisted Pairs with Bright Color for Easy Recognition
4.Ripcord and Footmark for Convenient Use
5.Smooth Jacket for Easy Pulling in Tight Space
6.Color in Light Grey, Dark Grey, Blue, White or as per Your Requirement

Applications:
1.Computer Network Cabling Project.
2.Broadband Network Communication.
3.Digital ISDN Network and ATM 155Mbps Network
4.Ethernet Network
5.Audio and Data Transmission
Insulation:
Material: HDPE and FRPE
Diameter: 1.02±0.005mm
Average thickness: 0.212mm
Minimum point thickness: 0.2095mm
Sheath:
Material: PVC or LSOH
Nominal diameter: 6.0 ±0.2mm
Average thickness: 0.55mm
Minimum point thickness: 0.50mm
Operating temperature: -20 to 75°C
Minimum bend radius (install): (8*OD)
Flame test: CMX, CM, and IEC60332-1
Reference standard: TIA/EIA568B and IEC/ISO11801

Packing: 1000ft/box(305metres)



Product photo

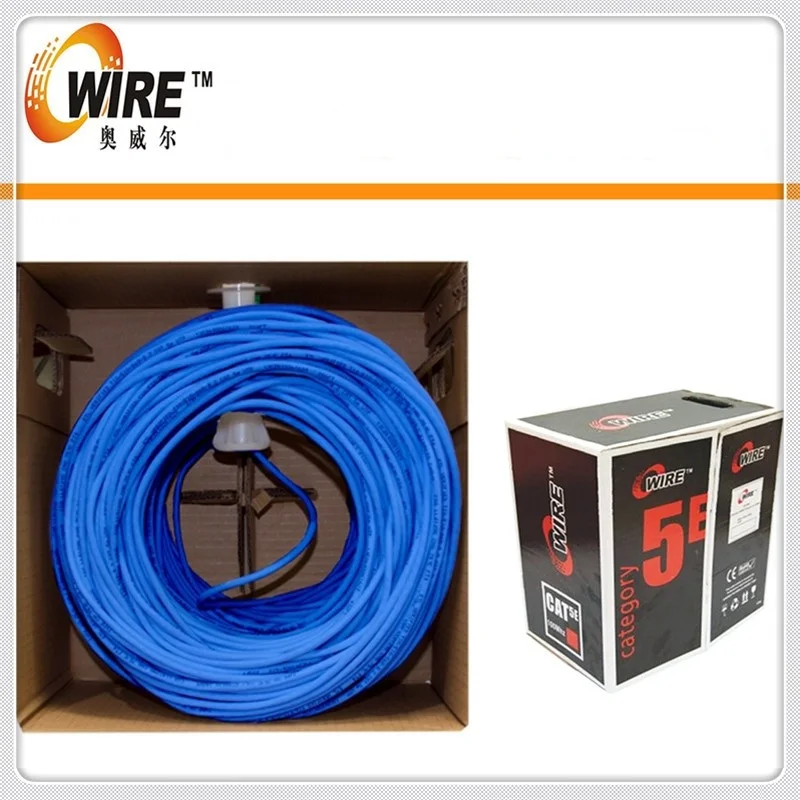

computer cable.jpg

cat6a UTP 17.jpg



cat6 cable utp 3.jpgcat6 cable utp 1.jpgcat6 cable utp 2.jpg

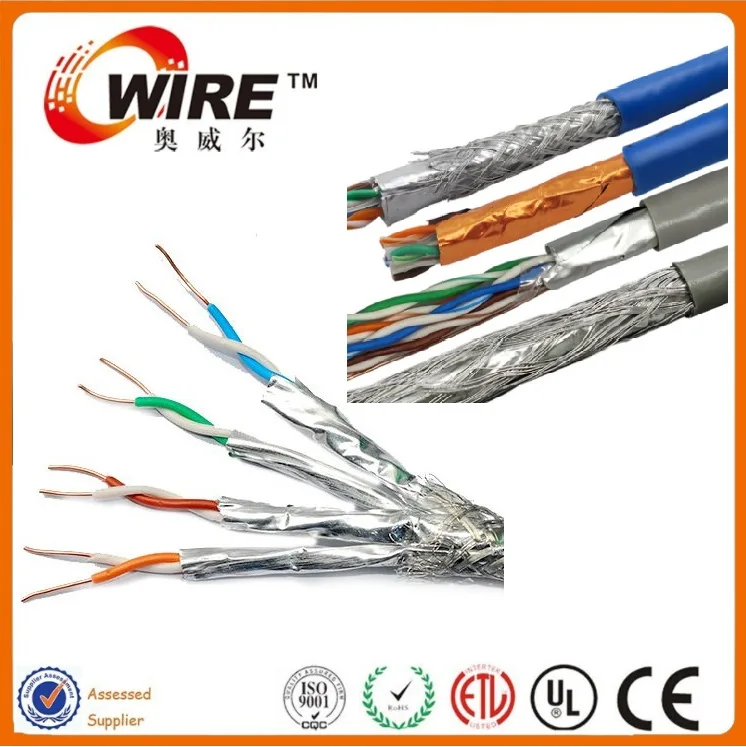

braided lan cable.jpg










UTP/FTP/S-FTP cat5e/cat6/cat6a network cable Application

Horizontal cabling in working area.Used in voice system,ISDN,ADSL,Communications room.

10BASE-T,100BASE-TX/T4,1000BASE-T,etc.



network cable application.JPG





Certificates







Company Informations



  Shenzhen Owire Communication Technology Co., Ltd. is a professional Telecommunication cable manufacturer for 17 years , which is specialized in researching and developing, manufacturing network cables, fiber optic cables, coaxial cables, telephone cables, RVV, drop cables and various special cable OEM/ODM customized.

The brands includes Owire, Apkte, Ater, Anputesu, Anpuzhaosu, Anpujisu exporting to 60 countries in Europe, America, South America, Southeast Asia, Africa, etc. and OEM and ODM are available.

We have a 10,000 squaremeters factory building in Shenzhen, China. With the most advanced producing and testing equipments, most professional R&D team, all products passing American Fl uke Test, RoHS, CE and TLC UL Certifications. With the excellent management system, LAN Cable Passing UL (CMR,CM).

We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.

lan cable manufacturer.jpg



computer cable.jpg





FAQ

UTP/FTP/S-FTP Cat5e/cat6/cat6a FAQ

1.What is your MOQ?  No MOQ.  you can just tell us your qty.

2.Can I  get samples?  Yes.

3.How long for sample & production leadtime?

1.Sample leadtime: 3-5 days.           2.Production leadtime:10-15 days.

4.Accept OEM or ODM?

Yes,we're manufacturer. And we have our own Engineering Department. You just need to tell us your requirements.

5.What certificates passed ?

UL /ROHS /CE/ ISO /FCC /CCC certificates etc..
