RG6 double Shielded CATV Communication coaxial cable

FOB Reference Price:Get Latest Price
$1.00 - $128.00 / Box | 100 Box/Boxes (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
rg6 cable, RG6 duoble Shield CATV Communication Cable Coil 100m
Number of Conductors:
1
Type:
Coaxial
Application:
CATV/CCTV
Conductor Material:
CCS,CCA,CU
Shield:
Al Foil+braiding
Jacket:
PVC PE etc
Coaxial Cable coverage::
40%, 60%, 77%, 85%, 90%, 93%, 97% or customized
Power::
0.5mm2, 0.75mm2 or OEM
Impedence::
75Ohm
Certification:
CE/ROHS/ISO9001/UL/SGS /ANATEL
Supply Ability
Supply Ability:
50000 Meter/Meters per Week
Packaging & Delivery
Packaging Details
1). Coil With Carton
100M/Coil, 6 Coil/Carton
200M/Coil, 300M/Coil, 2 Coil/Carton
Other Length: 20Yard/Coil, 30Yard/Coil, 60Yard/Coil, 100Yard/Coil.
2). Reel With Pallet or Not
100M/Paper Reel
100M/Plastic Reel, 200M/Palstic Reel, 305M/Plastic.
305M/Wooden Reel, 500M/Wooden Reel
3). Reel In Box, With Pallet
500ft Reel In Box.
1000ft/Reel In Box.
Color Box and OEM Package available.
20" Container Full Load: 350-420km.
40" Container Full Load: 650-780km.
Port
shenzhen/hongkong
Product Description

_01.jpgRG6 duoble Shield CATV Communication coaxial cable

RG6 duoble Shield CATV Communication Cable Coil 100m

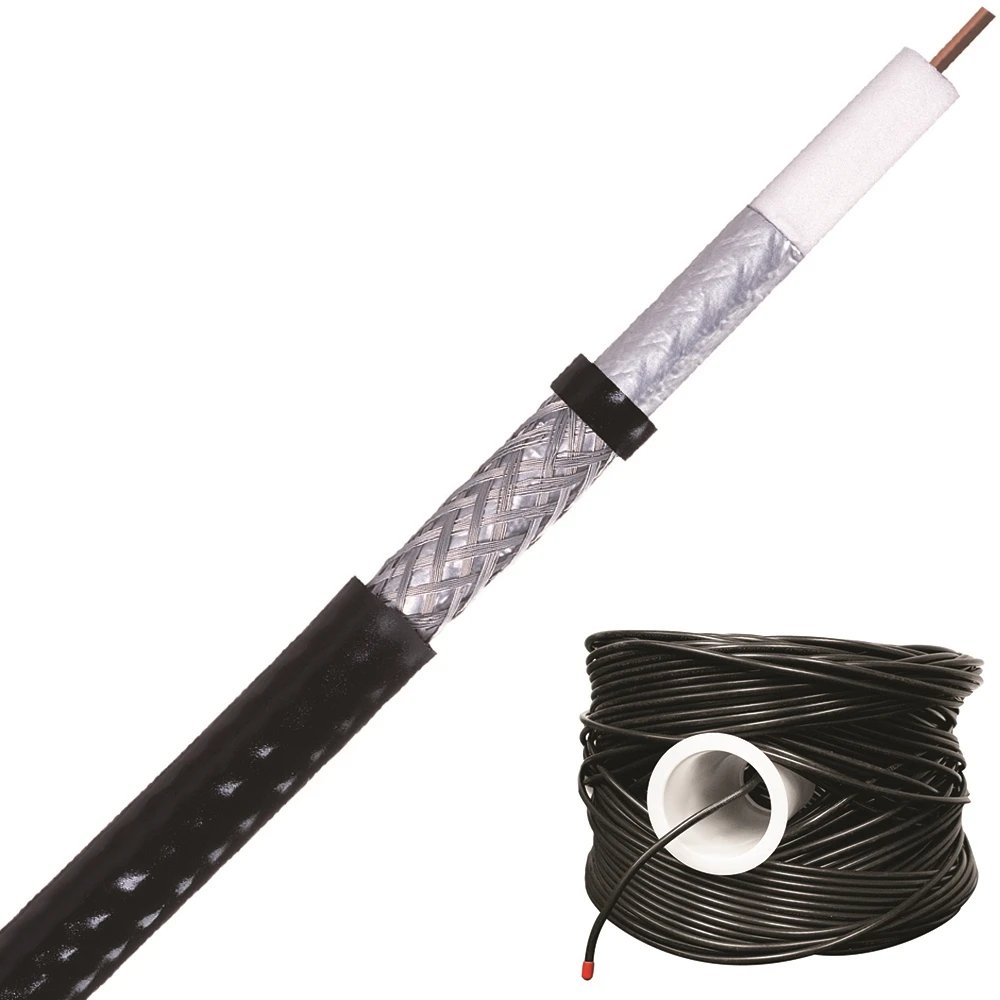

Construction:

Model NO. Coaxial Cable / CCTV Cable
Center conductor Copper Clad Steel, Bare Copper, Tinned Copper
Al-foil Unbonded AP, Bonded AP, APA
Braiding wire AL_MG, Bare Copper, Tinned Copper
Braiding wire diameter 0.10mm, 0.12mm, 0.13mm, 0.14mm, 0.15mm, 0.16mm
Braiding net 32#, 48#, 64#, 72#, 80#, 96#, 120#, 128#, 144# and more available
Braiding coverage Between 30% - 100% available
PVC jacket Flame retardant, UV, or UL available

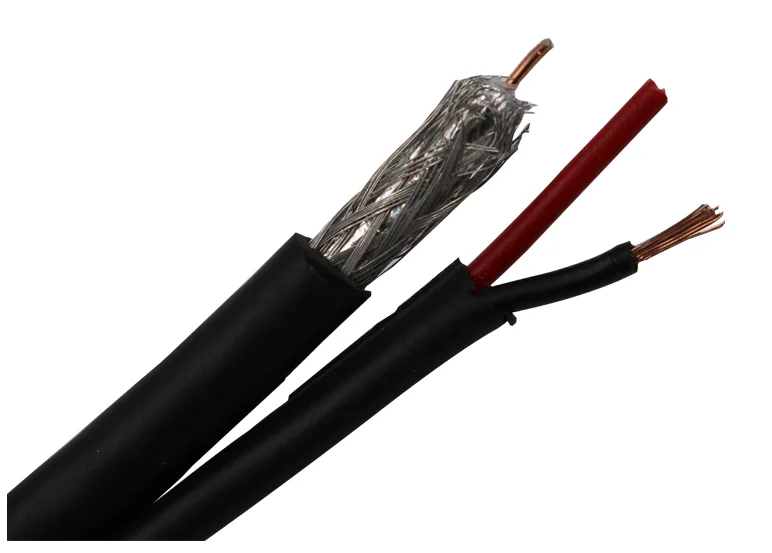

With Siamese 2*15*0.15mm  2*18*0.18mm  2*7*0.38mm  CCA/BC/Tinned Copper
With Messenger 1.0mm/1.3mm Steel
Packing Lengths 100m/roll, 200m/roll, 305m/roll, according to client's request
Inner packing Roll, wooden reel, plastic reel, paper reel available
Outer packing Carton box, pull out box, pallet available


Options:
1. Inner Conductor: Bare Copper, CCA, CCS
2. Dielectric: Foam/Solid PE
3. Shield: (Bonded/non-bonded) A/P/A, A/P Foil, copper Foil
4. Braid wire material: Bare Copper, CCA, AL-Mg, TC .
5. Braid wire diameter: 0.12mm, 0.16mm
6. Braid net: 64W, 72W, 80W, 96W, 128W and more
7. Braid coverage: 60%, 70%, 80%, 90% and more
8. PVC jacket degree: 65, 70, 75 and more
9. Certifications: UL, CSA, ETL, RoHS, CE etc.
10. Customized requirement welcomed.
Electrical Specifications:
Characteristic Impedance: 75 Ohm± 3 Ohm
Nominal Velocity of Propagation: 85%
Nominal Capacitance: 16.2 pF/ft
Return Loss: 20dB min (5-2250 MHz)

>>>>>>>>>>>>>Contact Us_03.jpgrg59+DC.pngrg59+DC2.pngUTB8t9k0.jpgDSC_4465.jpgCOAXIAL_CABLE>>>>>>>>>>>>>Contact Us_05.jpg_06.jpg>>>>>>>>>>>>>Contact Us_07.jpg_09.jpg
